TRANSFORMING CARD PRINTING WITH CUTTING-EDGE INNOVATION

Eco-friendly, high-efficiency Certified CMYK inks

Intelligent Card Handling

Automated and accurate card feeding system

High Resolution Output

Mag Strip/Smart chip NFC /RFID Encoding

Print CR80 cards and up to 140x88 mm and beyond

Versatile Printing Models

3 in 1 Encoding

From 1440 x720 DPI up to 1440 x2880 DPI

Portable & Robust Design

Long-lasting tested prints 168h at 85°c & 85% humidity

Color Performance

Pure black, spot Pantone colors, securityink & varnish ink option on demand

Durable UV Printing

Compact & mobile, suitedfor any environment

Advanced CMYK+W Ink System

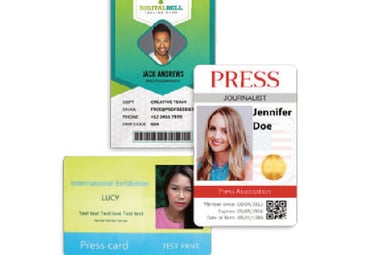

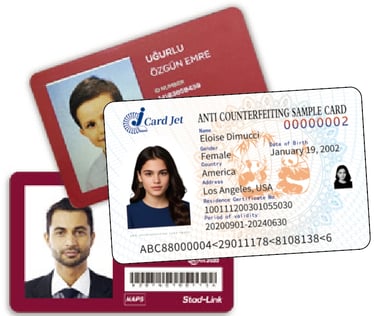

APPLICATIONS - WIDE RANGE OF CARD PRINTING POSSIBILITIES

Product specifications

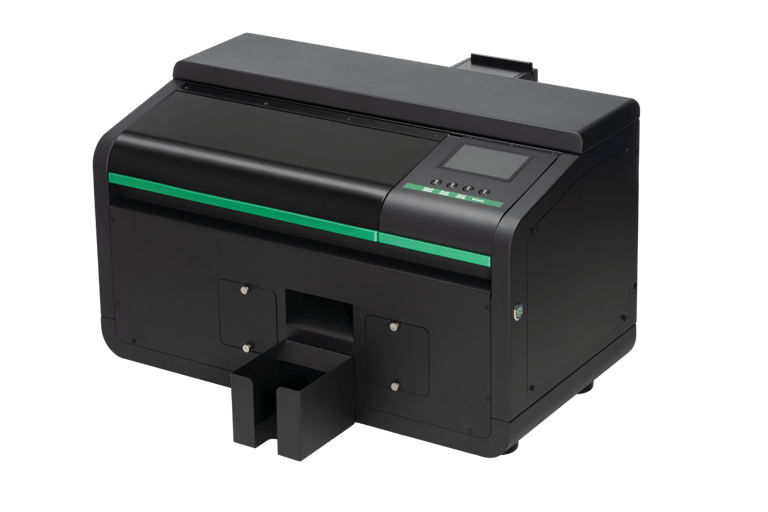

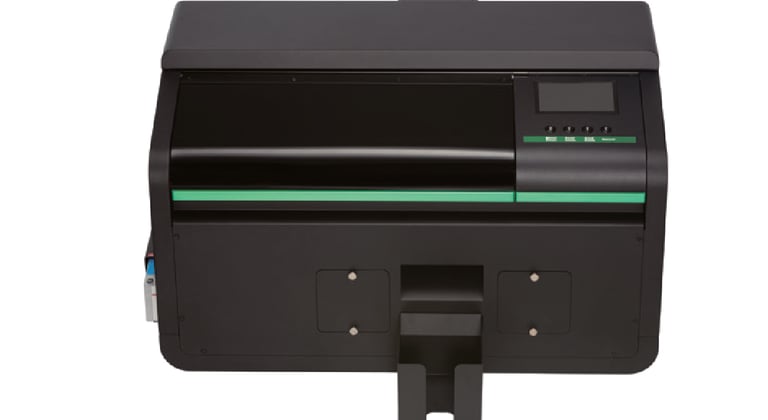

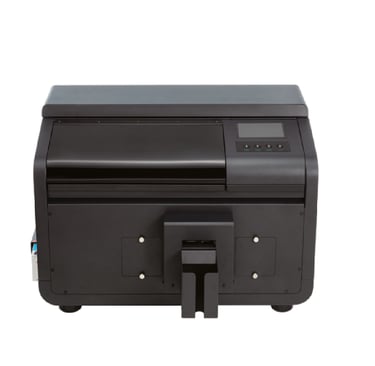

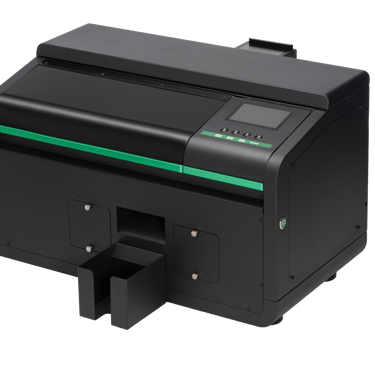

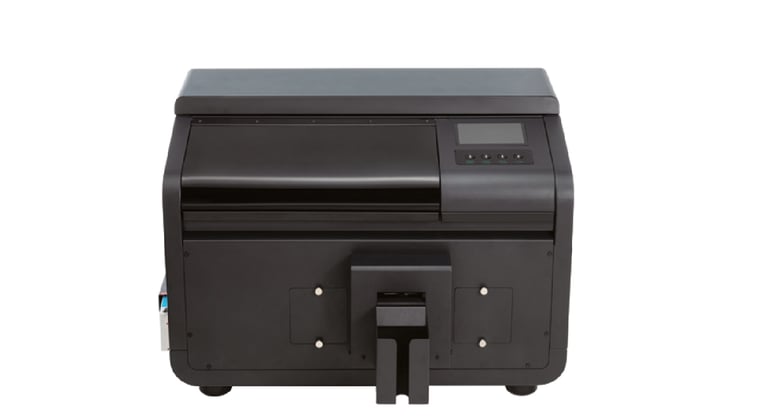

Product Overview

SKU

AJPD-N-HS

HH-1800

HH-1800Plus

AJPD-P

Printing Technology

UV Inkjet Technology

Certifications

CE, FCC, RoHS, REACH

Warranty

2-year warranty (printhead, and ink channel included)

Printing Capabilities

Technical Specifications

Color Printing

White Ink Printing

Varnish Printing

Embossed Printing

Braille Printing

Full Color CMYK mode

Full Color CMYK mode

Optional as spot color

N/A

N/A

N/A

Dedicated white ink channel for custom digital printing

Optional gloss / matte varnish coating (requires varnish ink)

Software controlled ink layering for 2.5D - 3.0D embossed tactile effect

ISO 17351-compliant Braille encoding with 0.5mm dot height precision

Printing Speed

120-150 cards/hour (singlesided, about 60% coverage);up to 200 cards/hour (bidirectional)

60-100 cards/hour

(single-sided, depends on coverage)

Printing Resolution

from 720 DPI up to 2880 DPI

from 720 DPI up to 2880 DPI

Printing Size

CR80

CR90+ up to 88*140mm (customizable)

Card Thickness

0.72 - 1.4 mm (ISO-compliant)

Supported Materials

PVC, PET, ABS, PC (wood, metal only single feeding)

Ink Type

UV Inks: Cyan, Magenta, Yellow, Black, White (optional)

UV Inks: Cyan, Magenta, Yellow, Black, White, Varnish, Invisible UV

Ink Cartridge Capacity

Ink cartridge: 230 gr / color (130 gr optional)

Printhead

Printhead: Epson 1800i

Interfaces

Interfaces: USB 2.0/3.0, Ethernet

Compatibility

OS Compatibility

OS Support: Windows® 7/10/Server Editions

Physical Specifications

Printer Dimensions

(W*D*H)

780 x 624.5 x 462 mm

(30.70 x 24.58 x 18.19 in)

780 x 705 x 462 mm

(30.70 x 27.75 x 18.19 in)

Printer Net Weight

75 kg

75 kg

Power Requierements

Power: 110-220V, 50-60Hz, max 3.0A

Environmental Ranges

Temperature Range

15°C to 32°C (59°F to 90°F)

15°C to 32°C (59°F to 90°F)

Humidity Range

20%-80% non-condensing

20%-80% non-condensing

Optional Configurations

Dual-Side Printing

Encoding Technology

Dual-side printing module (external)

Magnetic stripe,Chip, RFID

N/A

N/A
