Batch printing compatible with multiple materials
Making certificates has never been so simple
Intelligent issuance

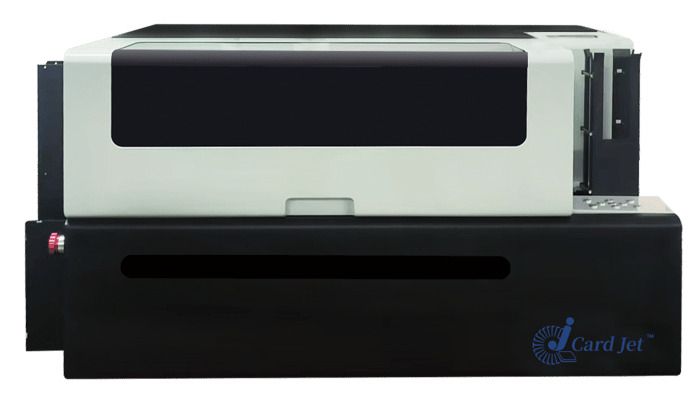

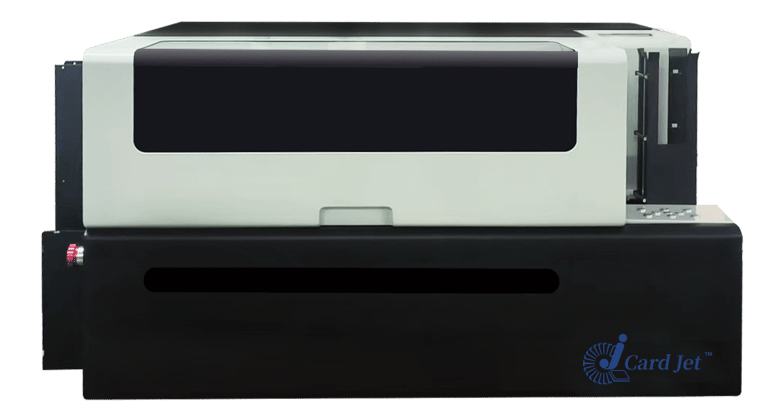

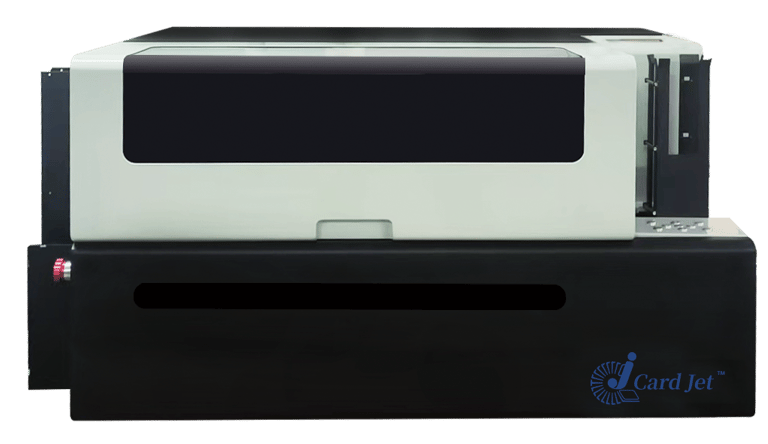

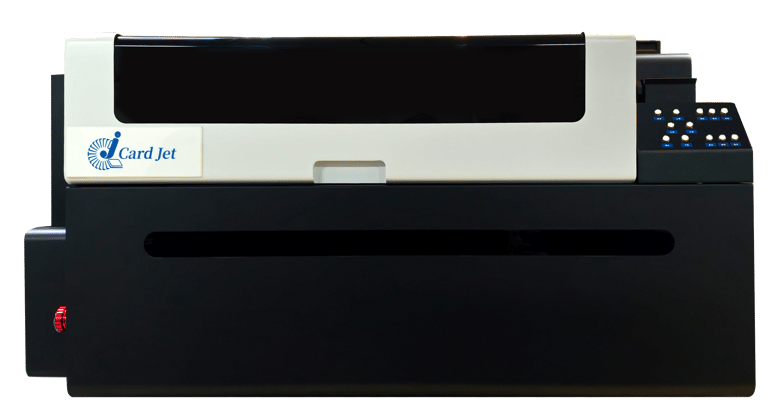

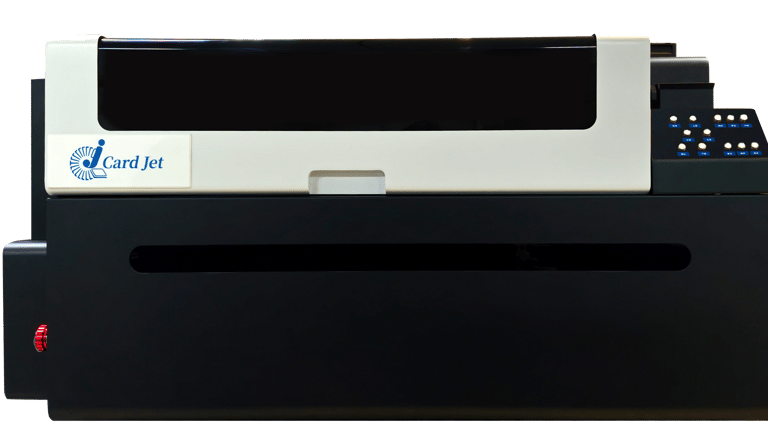

HH-8010-3U is a high-speed UV certificate card printer specially designed for efficient batch certificate production. Its core advantage lies in its three-slot parallel printing architecture, with a maximum printing area of 290mm, capable of achieving an outstanding production capacity of 220 sheets per hour on a single side and 110 sheets per hour on both sides. This device has extremely strong compatibility and supports multiple materials such as PVC, PET, ABS and PC. It is equipped with eco-friendly ink and optional colored varnish and white ink solutions, combined with LED-UV curing technology, ensuring rich colors and immediate drying of the picture. It supports the printing of cards made of various materials, meeting the diverse needs of different industries for card printing. It is widely used in the production of ID cards, work permits, student ID cards, membership cards and other types of cards.
Make every card a symbol of trust
The structure is simple and easy for daily maintenance and upkeep,Reduce downtime and maintenance costs.
Multi database integration
Multi format database direct connection,Zero error in certification,precise and unbounded data!
Cost effectiveness
Automatic card entry and exit,double-sided automatic flipping,Automatic sorting of waste cards reduces manual intervention,Improve operational efficiency.
Intelligent chip encryption, Personalized data distribution, data is sent and deleted immediately.
Intelligent issuance, safe and reliable
Automated processes
Each ink cartridge can print 8000+ CR80 card
Multi material compatibility

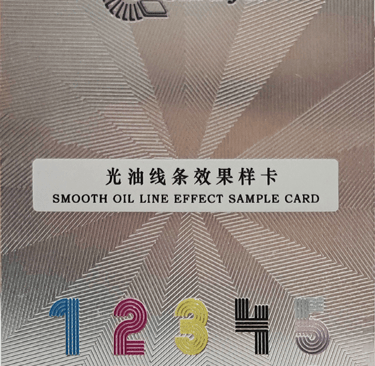

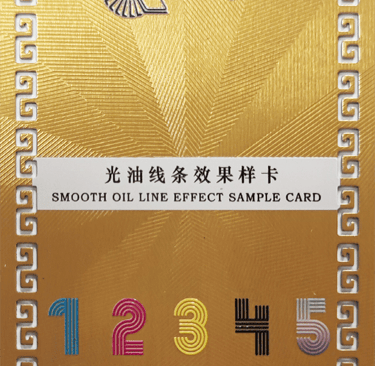

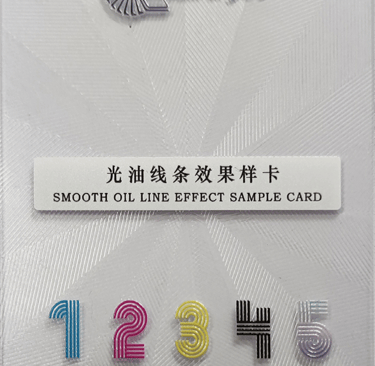

Specializing in environmentally friendly ink, compatible with multiple materials, High definition and durable, with colors that last forever like new.
Intelligent certification system
Integrated platform intelligent control,Multi threaded module intelligent parallel connection. Highly integrated operation simplifies complexity.
Specialized ink system
Support PVC, ABS, PET, PET-G Printing cards from various materials such as PC, Adapt to different scene material requirements.
Modular design
Intelligent operation and maintenance, worry free and effortless
Spray nozzle cleaning, ink volume detection, 24-hour continuous operation.
Portrait ID card
Id card and membership card
Media ID card
Event Registration Card
APPLICATIONS - WIDE RANGE OF CARD PRINTING POSSIBILITIES
Product specifications
Product Overview
Model
HH-8010-3U
Core advantages
High speed batch certification, excellent efficiency and quality.
Core performance
Three-position parallel printing (maximum format 290mm)
Product parameters
Printing method
UV inkjet
Curing Method
LED UV curing
Ink type
Yellow (Y), Red (M), Blue (C), Black (K), Varnish (optional), white (optional),Spot color (optiona)
Nozzle type
4 ink channels and 8 ink channels
Print mode
Single/double-sided automatic flip printing
Print Speed
Single sided 220 sheets/hour, double-sided 110 sheets/hour
Card Thickness
0.8m-1.0mm
Printing Size
CR80 standard card
Supported Materials
PCV、PET、ABS、PC、 Wood
Support Agreement
ISO14443 Type A/B,ISO15693 (M1/CPU/NFC)
Communication interface
Network interface
Ink cartridge capacity
200 grams/color (optional 130 grams)
Work environment
60 ℉ -90 ℉ (15 ℃ -32 ℃), 20% -80% non condensing humidity
Product specifications
Equipment size
1245mm*765mm*635mm (length*width*height)
Equipment weight
120kg
Package size
1330mm*815mm*830mm (length*width*height)
Package weight
20kg
Packaging method
Flight Case
Built-in host and system
Host configuration
Windows10 (Professional Edition) system; Intel Core i3 processor 16G memory; 256G solid-state drive
Single card issuance
Architecture design
